5"g Raised trucks

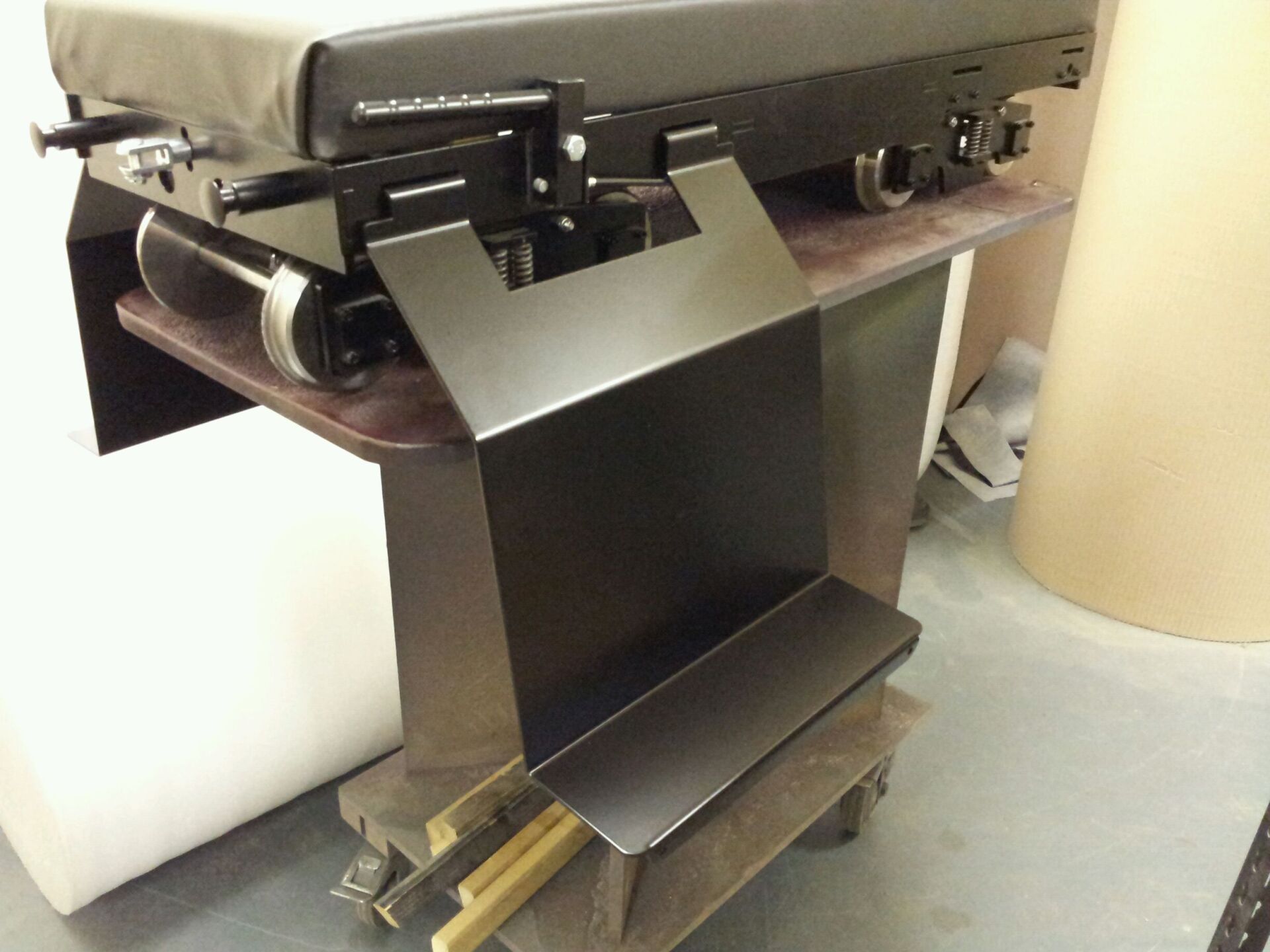

5"g Raised driving trucks.

With "Rapid-fit" stirrups.

3ft 1 person truck

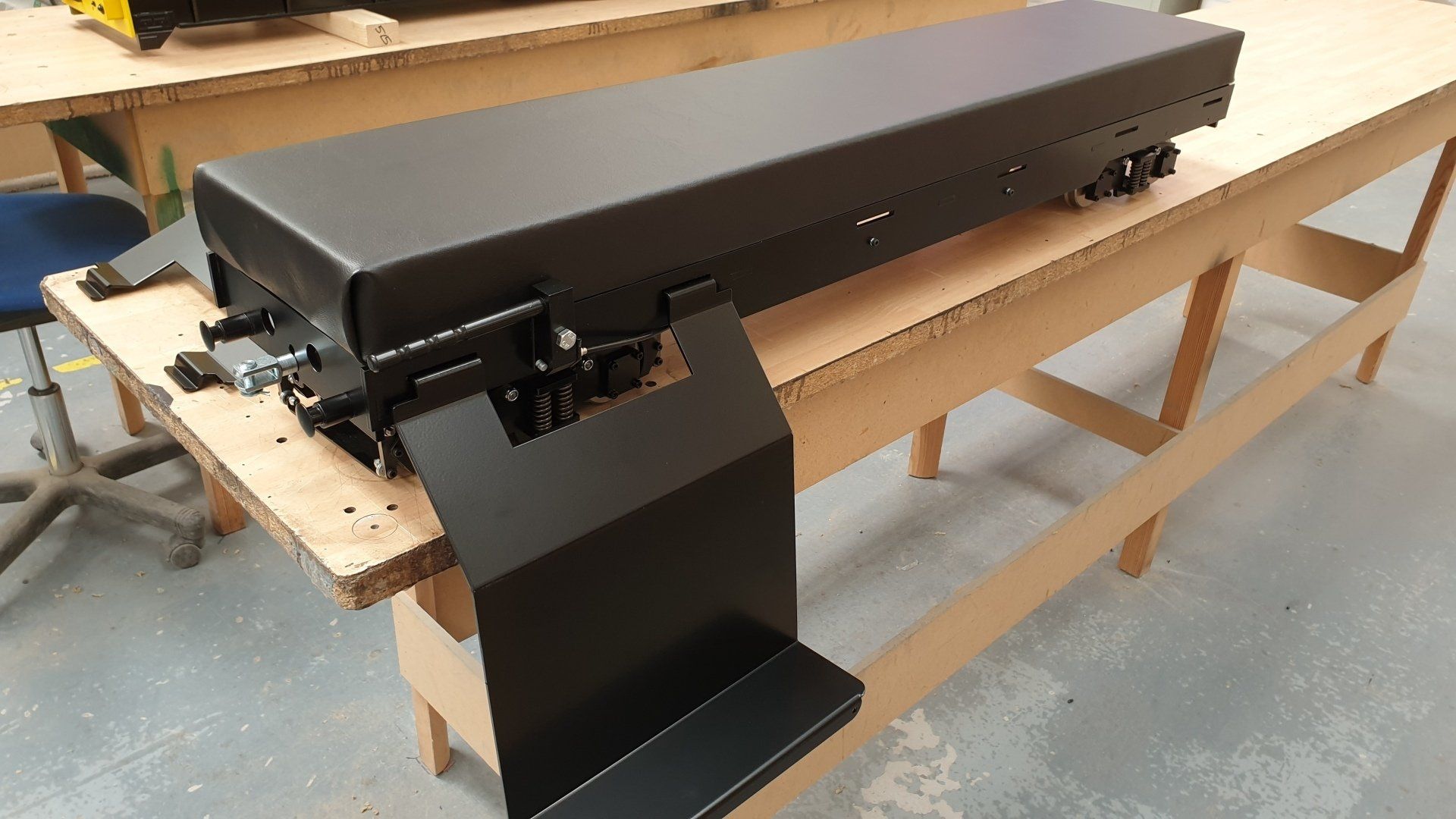

4ft 1 person truck

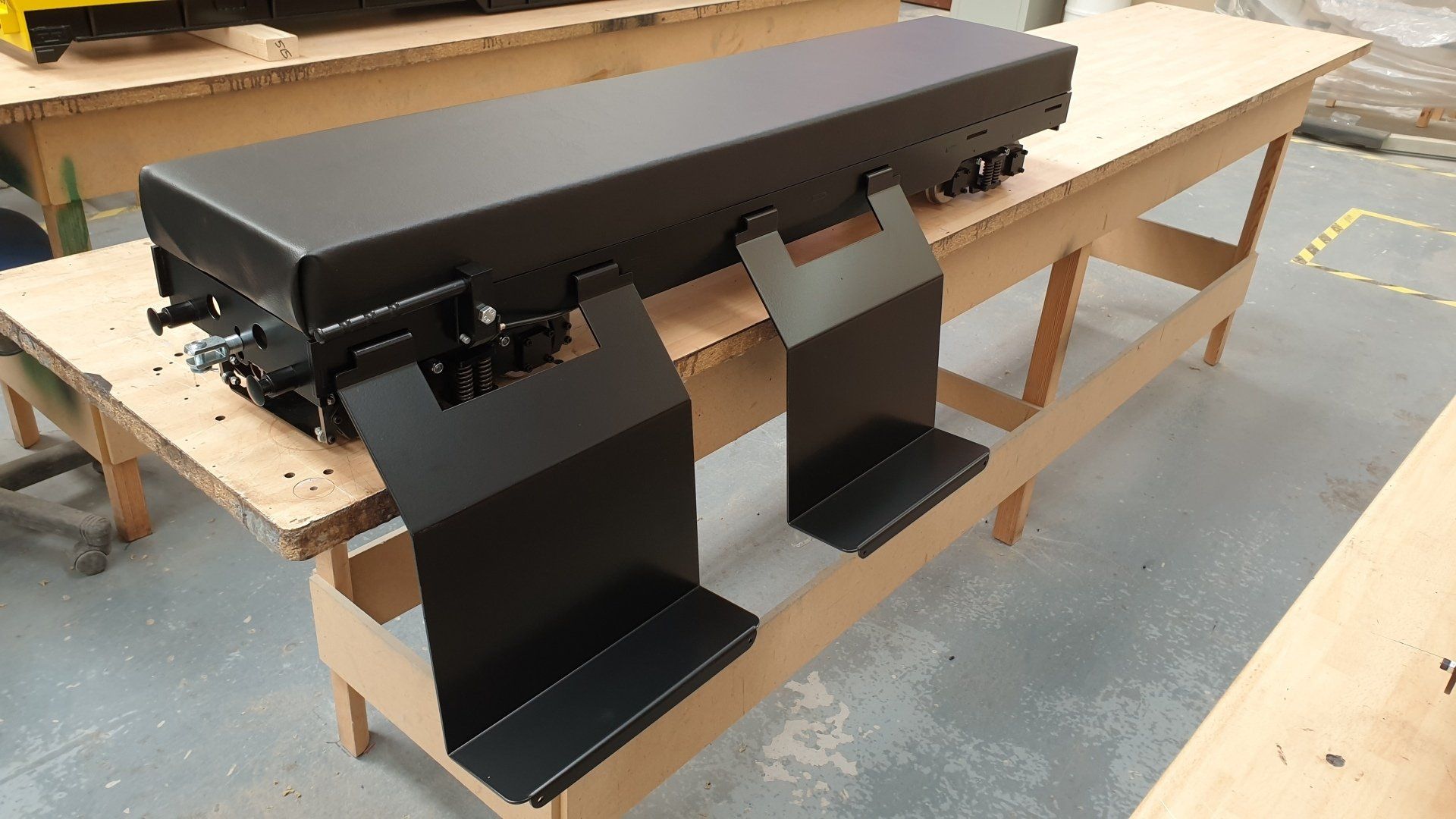

4ft 2 person truck

All pictures above show optional braking fitted.

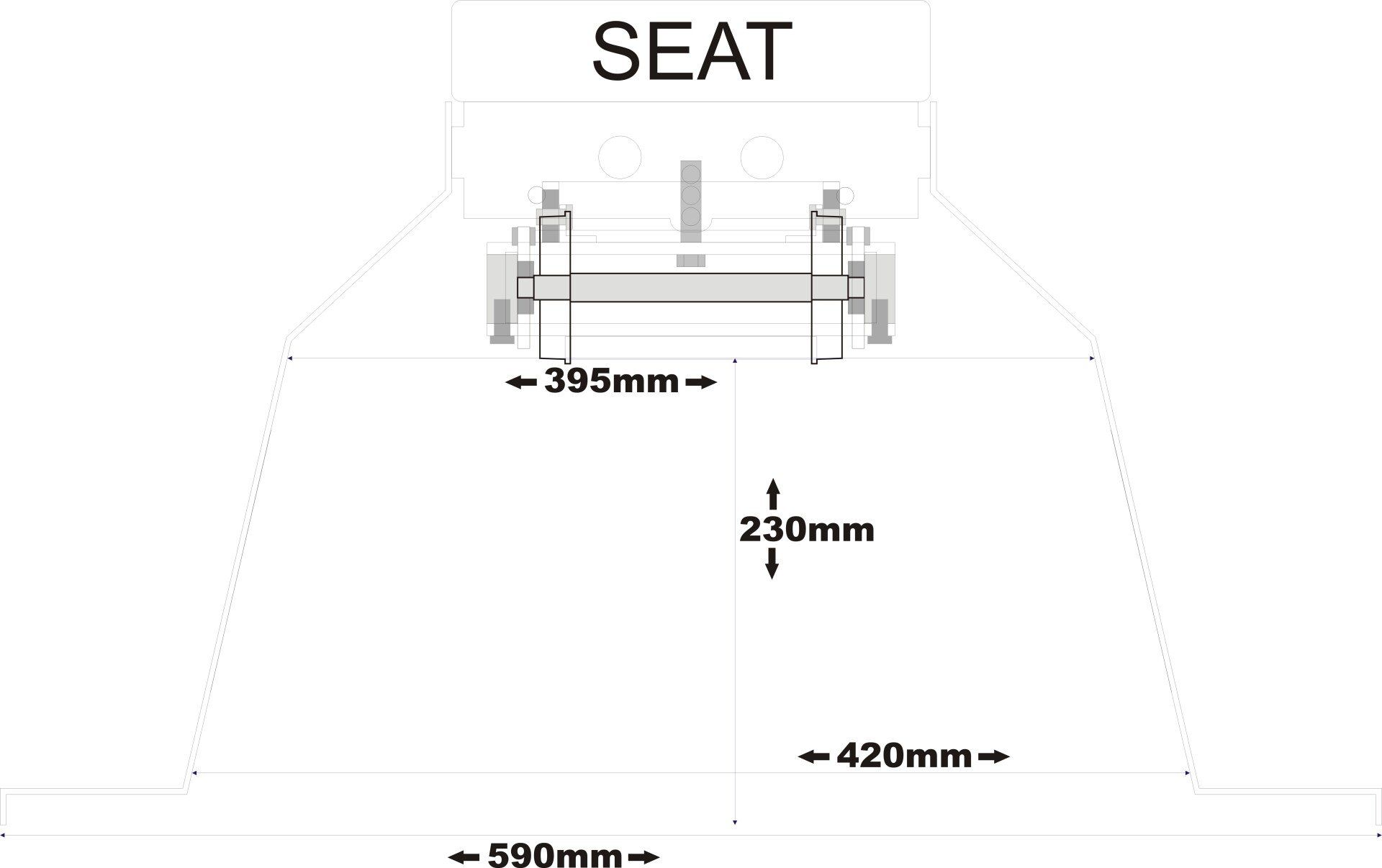

Internal dimensions

Add Braking.

5" gauge standard single bogie brake set £150


laser cut & CNC machined parts.

PNP brake shoes.

powder coated machined handle.

return spring.

fully compensating brake pressure to all wheels.

5"g Dual bogie braking £240



All wheels, both bogies, fully Compensating braking.

fully adjustable, fine tuning.

PNP brake shoe`s.

Can be fitted to 4ft & 5ft trucks.

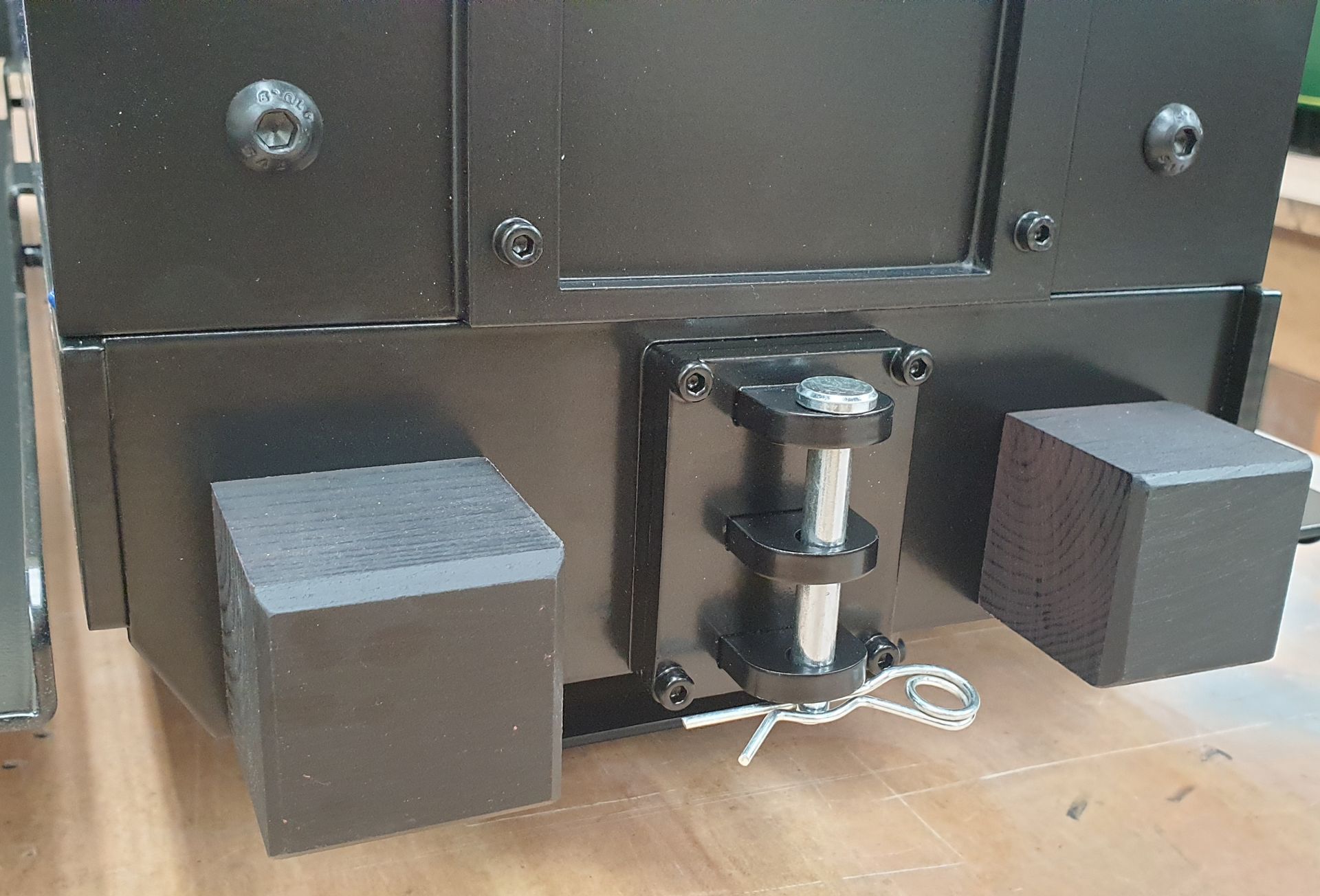

All raised driving trucks 3ft & 4ft come with "Dumb blocks" fitted as standard.

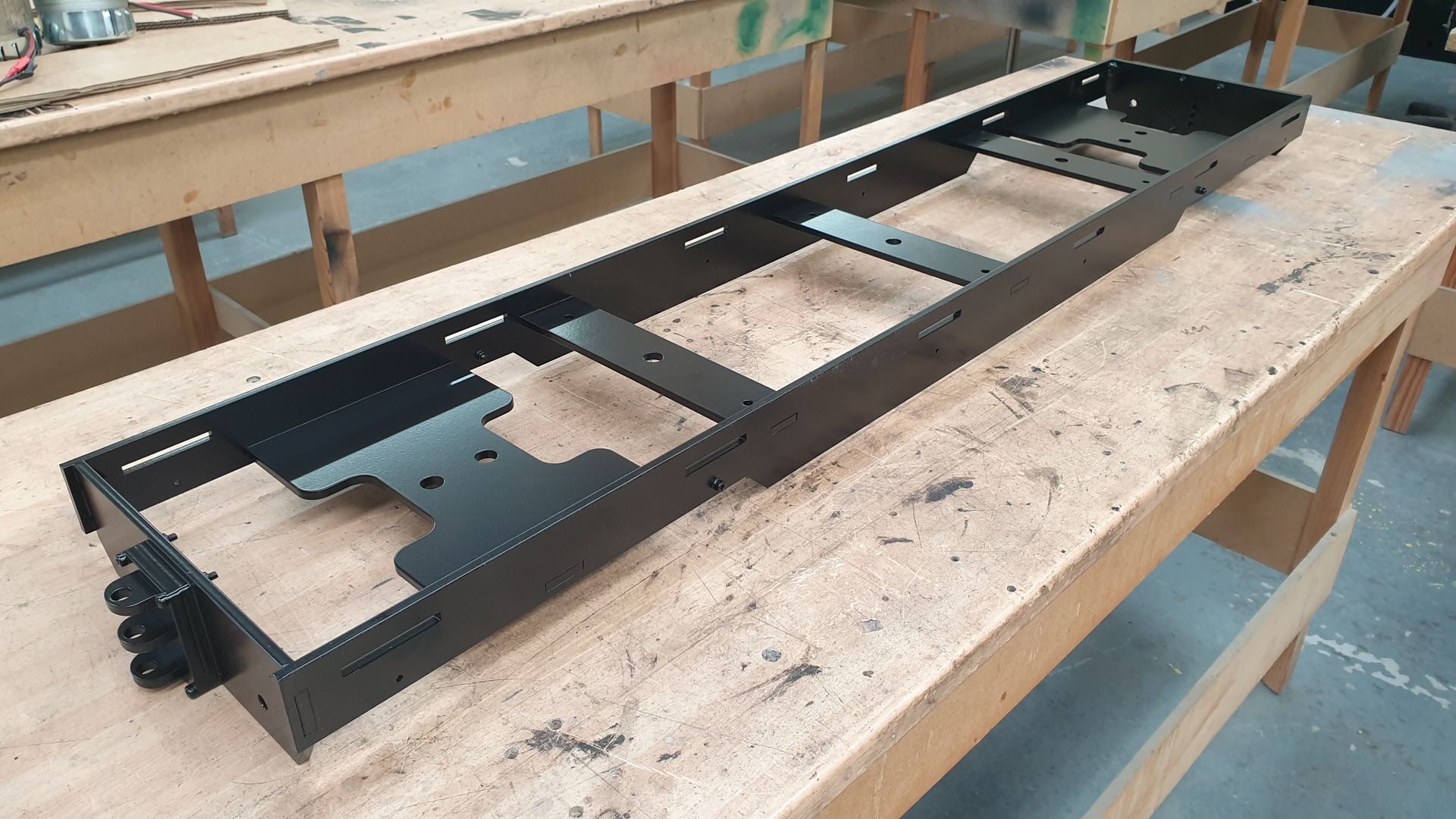

6mm thick precision laser cut welded chassis

Price list

3 ft chassis, bogies, seat pad and driver safe stirrups £525

4 ft chassis, bogies, seat pad and driver safe stirrups £545

4ft chassis, bogies, seat pad and 2 sets stirrups (2 person) £625

 Add single bogie braking £150

Add dual bogie (all wheel) braking £240


£200 deposit required at time of order.

Normally within 2 weeks.

All prices include VAT. Balance on collection / Despatch of order.

5"g multi level driving truck
