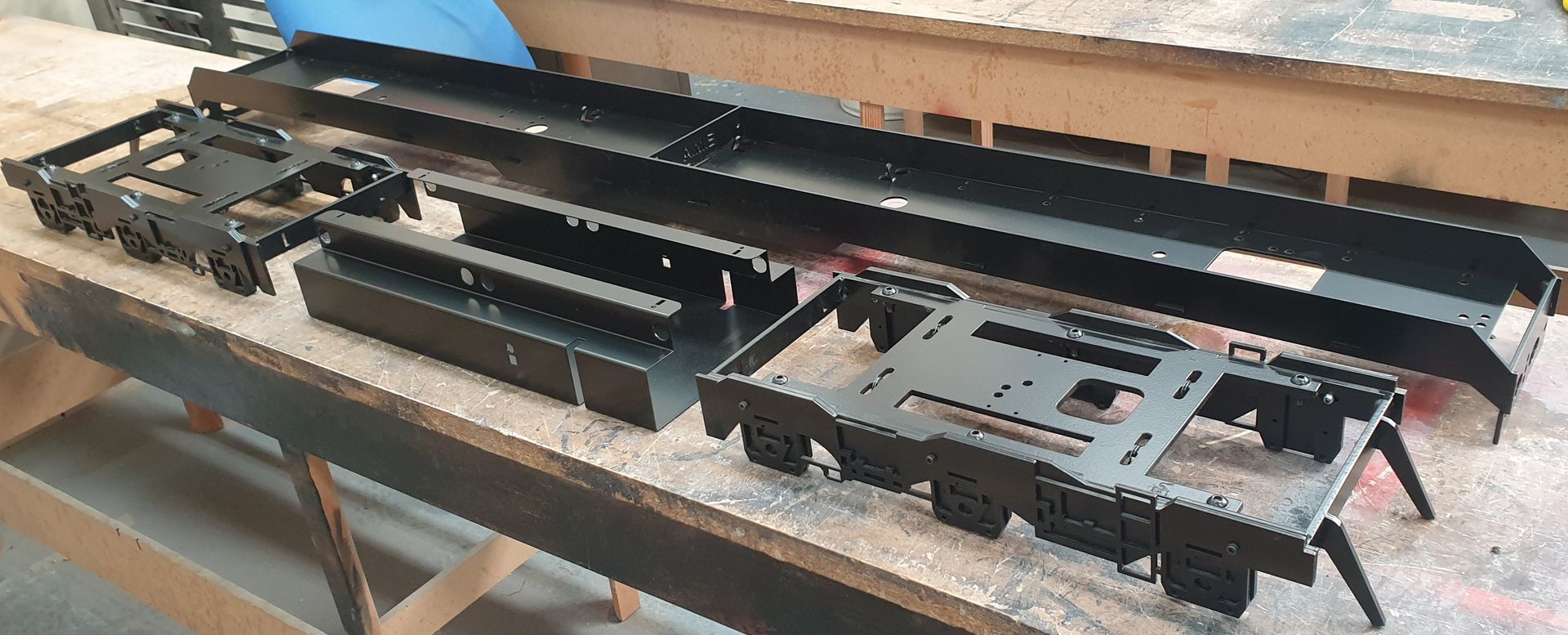

Class 66 precision laser cut chassis, bogie frames & fuel tank
COMES WITH A 12 MONTH WARRANTY
One piece fibreglass 20Kg body.
The body sits around a full length precision CNC laser cut fully welded, powder coated black steel chassis.
The bogies are 6mm CNC laser cut, welded and powder coated black.
With new laser cut side detail including steps.
All axle boxes and wheel sets are independently sprung for very smooth running on undulating track.
It has been designed from the outset to be a one person operation when it comes to loading &
un-loading the locomotive to / from your vehicle or trailer, Depending on how you do it a second person may be required.
Breaks down in to 4 parts:
Body, Chassis, 2 x bogies.
You require 2 or 4 12v batteries (not included with loco)
The class 66 is 24V
Comes with 4 motor sets with the option to upgrade to all wheel drive and to upgrade to all steel gearing.
Motor set gearing is 10 to 1
Only available in ready to run.
Includes a painted body to your choice of livery with graphics, windows, hand rails & LEDs etc all fitted.
All internal electrics fitted including a 24v control system, two tone horns, all plugs and sockets and
sound if ordered.
Bogies complete with detail, ready to run.
Our locomotives do not include batteries within the price, but we can have them ready for you to collect with your locomotive at extra cost.

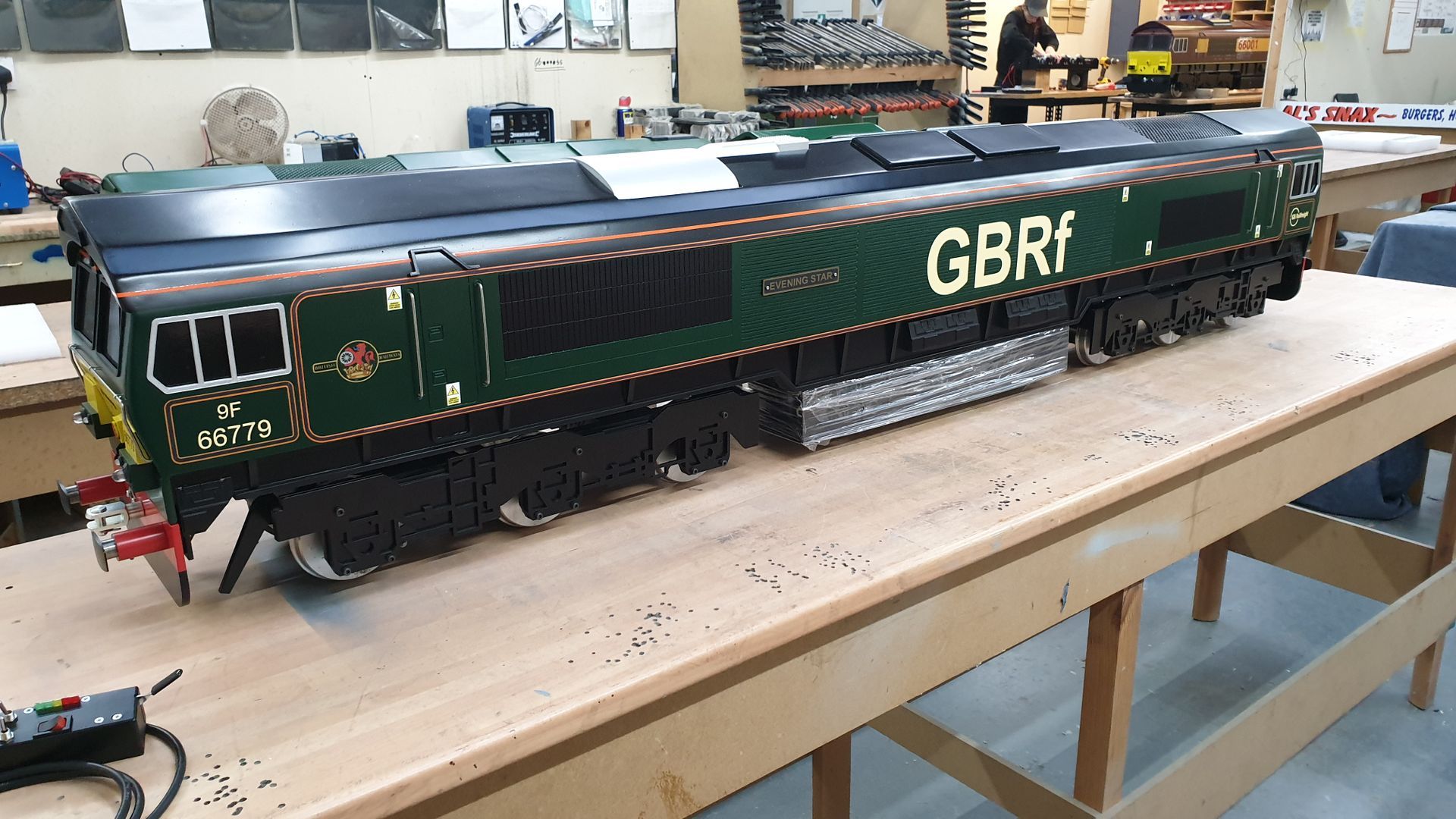

Liveries available: EWS, DB, Freightliner, GBRf, GBRf BR**, Belmond Royal Scotsman, Colas Rail and Evening Star**.
Dimensions:
7.25" gauge:
Length 8ft 9" (2670mm) over buffers
Width 13" (330mm)
Height 19" (482mm)
Ready to run (4 motor) £5295
Upgrade to ALL steel gearing on 4 motor sets £370
Two extra motor sets, (centre axles (AWD) £495
Upgrade to ALL steel gearing on 6 motor sets (AWD) £550
Internal 24V charging circuit with breaker £75
(No need to remove the batteries for charging)
Own 24v charger required.
Add 66 start / stop engine sound (fitted) £420
** £200 additional charge for name plates & graphics,
(GBRf BR & Evening Star only)
£1000 deposit required at time of order.
Please contact us for lead times & delivery details.
All prices include VAT. Balance on collection / Despatch of order.
